Radifeel VT Series High Reliability Cost Effective 640×512 Thermal Imaging Module Long-wave Infrared (LWIR) Uncooled Camera Modules Easy For Compact

Short Description:

This product is an infrared thermal imager with a compact design and economical price, featuring a readout circuit design and embedded advanced processing algorithms. It has the advantages of small size and low power consumption, making it convenient for users to integrate. It is applicable to industrial parks and forest fire prevention detection.

Request A Quote

Product Detail

Product Tags

Key Features

1.BT1120/BT656/USB2.0/MIPI(optional)

2.Resolution 640×512, high sensitivity, good image quality.

3.Supports multiple focal length lenses.

4.Support configuration saving function to record customer usage habits.

5.Two models available(Radiometry optional).

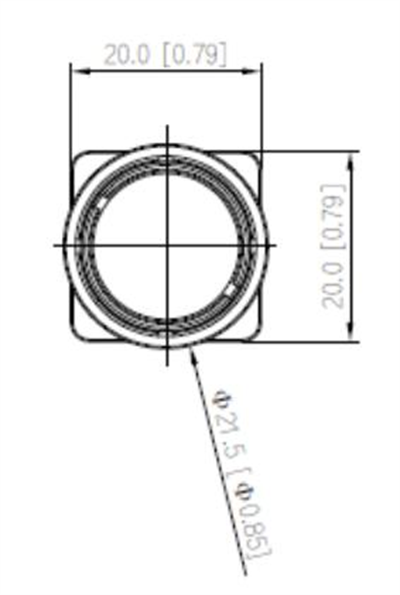

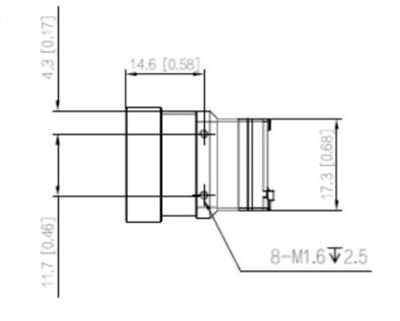

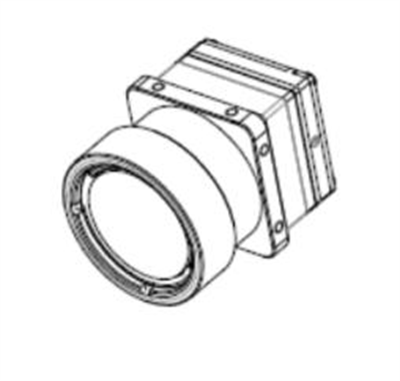

Structural drawings：

Specifications

Detector Type	Uncooled VOx
Resolution	640×512
Pixel Pitch	12μm
Spectral Range	8～14μm
NETD	≤40mk
Frame Rate	25hz/50hz
Analog Video Output	CVBS
Digital Video Output	BT1120/BT656/USB2.0/MIPI(optional)
Lens	9mm/13mm/25mm(optional)
Power Consumption	≤0.7W@25℃, standard working state
Working Voltage	DC 3.8-5V
Calibration	Manual calibration, background calibration
Palette	White hot / Black hot, 18 pseudo-colors are adjustable
Working Temperature	-40℃～＋70℃
Storage Temperature	-40℃～＋80℃
Size	17.3mm×17.3mm×10.5mm(Excluding lenses and extension components)
Weight	5g (excluding lens and expansion components)
Radiometry (Optional)
Temp. measurement range	-20℃~+150℃/ 0℃~+550℃
Accuracy	Max（±2℃, ±2%）
Focal Length	9mm/13mm/25mm
FOV	(46.21 °×37.69 °)/(32.91 °×26.59 °)/(17.46 °×14.01 °)
