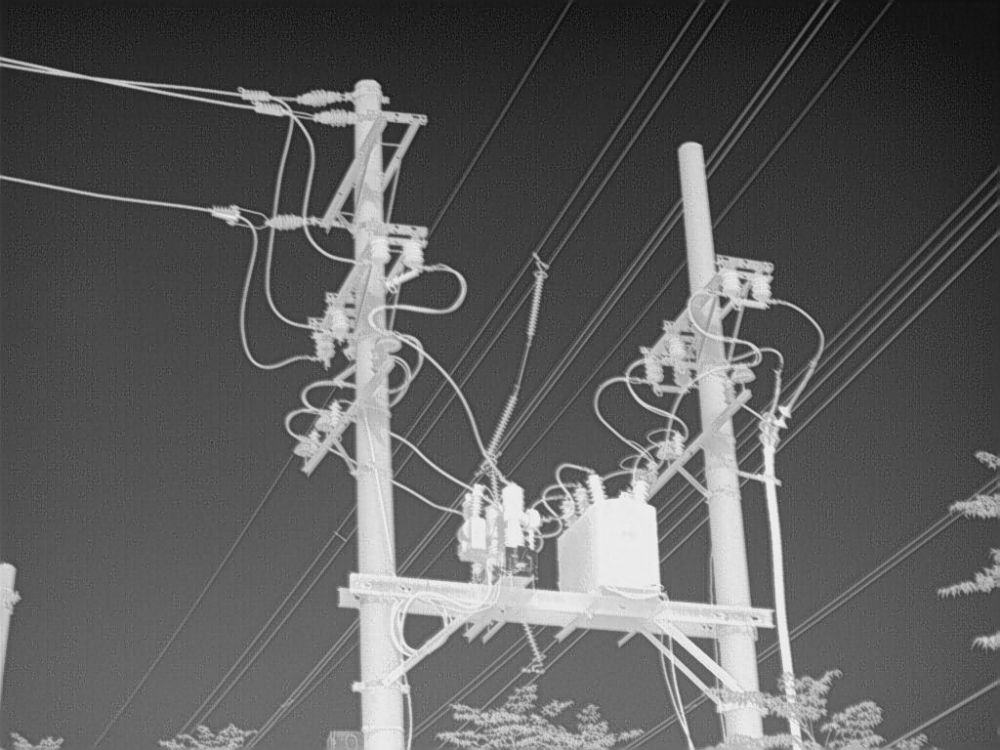

Radifeel RFT1024 Temp Detection Thermal Imager

Detector

1024×768, pixel pitch 17µm, spectral range 7.5 - 14 µm

NETD

<0.05°C@+30 °C

Lens

Standard: 28°×21°

Optional: Long EFL 12°×9°, Wide FOV 45°×34°

Frame Rate

30 Hz

Focus

Manual/auto

Zoom

1~16× digital continuous zoom

IR Image

Full-color IR Imaging

Visible Image

Full-color Visible Imaging

Image Fusion

Double band Fusion Mode（DB-Fusion TM）: Stack the IR image with detailed visible image info so that IR radiation distribution and visible outline info are displayed at the same time

Picture in Picture

A movable and size-alterable IR image on top of visible image

Storage (Playback)

View thumbnail/full picture on device; Edit measurement/color palette/imaging mode on device

Screen

5”LCD touch screen with 1024×600 resolution

Objective

OLED HD display, 1024 × 600

Image Adjustment

•  Auto: continuous, based on histogram

•  Manual: continuous, based on linear, adjustable electrical level/temperature width/max/min

Color Template

10 types + 1 customizable

Detection Range

•  -20 ~ +150°C

•  100 ~ +650°C

Accuracy

•  ± 1° C  or ± 1 % ( 40 ~100°C )

•  ± 2 °C  or ± 2 %（Entire Range）

Temperature Analysis

•  10 points Analysis

• 10+10 area(10 rectangle, 10 circle) analysis, including min/max/average

•  Linear Analysis

•  Isothermal Analysis

•  Temperature Difference Analysis

• Auto max/min temperature detection: auto min/max temp label on full screen/area/line

Detection Preset

None, center, max point, min point

Temperature Alarm

Coloration Alarm（Isotherm）: higher or lower than designated temperature level, or in between designated levels

Measurement Alarm: Audio/visual alarm (higher or lower than designated temperature level)

Measurement Correction

Emissivity（0.01 to 1.0，or chosen from the material emissivity list）, reflective temperature, relative humidity, atmosphere temperature, object distance, external IR window compensation

Storage Media

Removable TF card 32G, class 10 or higher recommended

Image Format

Standard JPEG, including digital image and full radiation detection data

Image Storage Mode

Storage both IR and visible image in the same JPEG file

Image Comment

• Audio: 60 second, stored with images

• Text: Chosen among the preset templates

Radiation IR Video (with RAW data)

Real-time radiation video record, into TF card

Non-radiation IR Video

H.264，into TF card

Visible Video Record

H.264，into TF card

Radiation IR Stream

Real-time transmission through WiFi

Non-radiation IR Stream

H.264 transmission through WiFi

Visible Stream

H.264 transmission through WiFi

Timed Photo

3 sec~24hr

Visible Lens

FOV matches the IR lens

Supplement Light

Built-in LED

Laser Indicator

2^nd level, 1mW/635nm red

Port Type

USB、WiFi、HDMI

USB

USB2.0, transmit to PC

Wi-Fi

Equipped

HDMI

Equipped

Battery

Chargeble lithium battery

Continuous Working Time

Capable of continuous working >3hr under 25℃ normal use conditio

Recharge Device

Independent charger

External Power Source

AC Adaptor（90-260VAC input 50/60Hz）or 12V vehicle power source

Power Management

Auto shut-down/sleep, can be set in between “never”, “5 mins”, “10 mins”, “30mins”

Working Temperature

-15℃～+50℃

Storage Temperature

-40°C~+70°C

Packaging

IP54

Shock Test

300m/s2 shock, pulse duration 11ms, half-sine wave Δv 2.1m/s, 3 shocks along each of X, Y, Z direction, while the device is not powered

Vibration Test

Sine wave 10Hz~55Hz~10Hz, amplitude 0.15mm, sweep time 10min, 2 sweep cycles, with the Z axis as the experiment direction, while the device is not powered

Weight

< 1.7 kg（Battery included）

Size

180 mm × 136 mm × 150 mm （Standard lens included）

Tripod

UNC ¼"-20
