Radifeel Long Range Intelligence Thermal Security Camera 360° Panoramic Thermal HD IR Imaging Scanner Xscout –UP155
Key Features

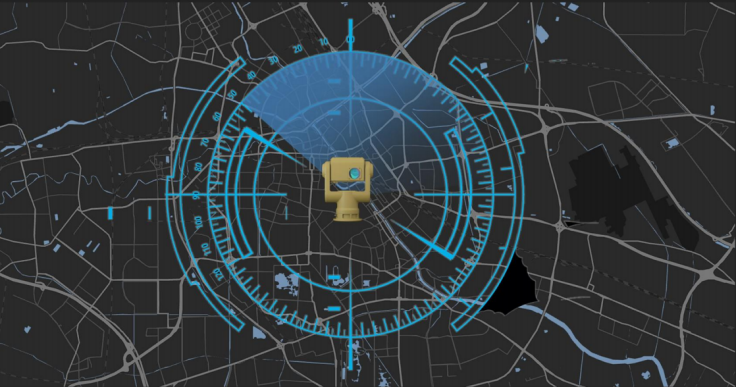

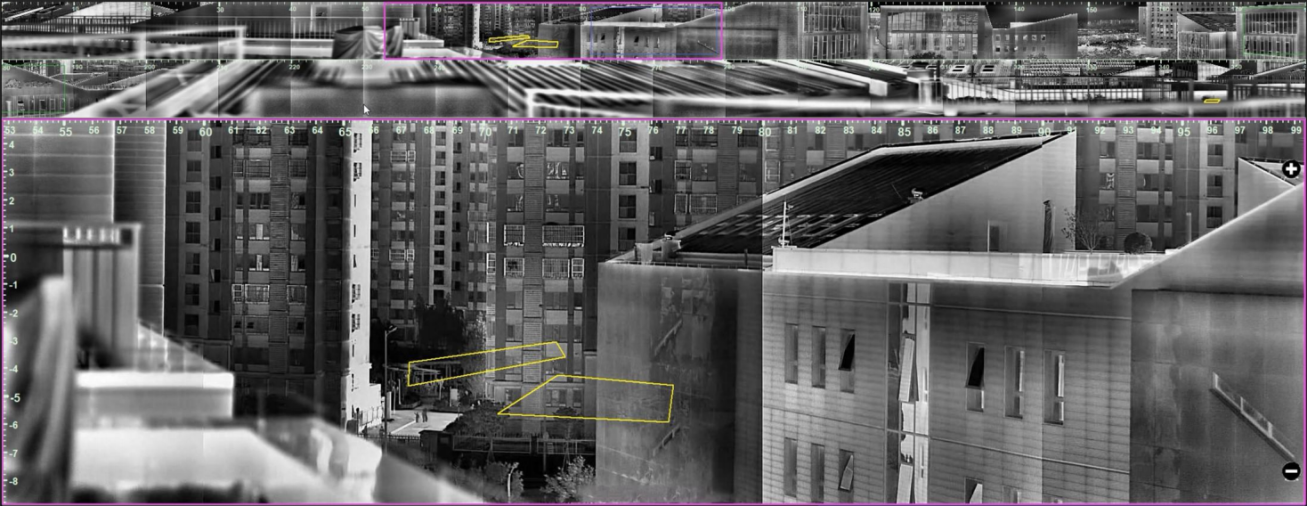

The Xscout-UP155: a 360° IR Surveillance Camera that enables rapid deployment anytime, anywhere. Boasting zero-blind-spot, full-angle motion detection under clear visibility, it delivers real-time panoramic IR imaging for uncompromised situational coverage.
Seamlessly integrating with diverse maritime and land platforms, this system offers effortless configuration for mission-specific needs. Its intuitive touchscreen GUI features versatile display modes, fully adaptable to both application requirements and operator preferences.
As a cornerstone of autonomous systems, the UP155 Panoramic Scanning Infrared Imaging System stands as the ultimate covert solution. It empowers long-range nighttime situational awareness, navigation, and combat Intelligence Surveillance and Reconnaissance (ISR) & C4ISR—setting a new standard for reliable, stealthy mission support.
Specifications
| SPECIFICATIONS | |
| Detector | Uncooled LWIR FPA |
| Resolution | 1280×1024 |
| Pixel Size | 12μm |
| Spectral Range | 8 ~12μm |
| Objective Lens Focal Length | 55mm |
| F Number | F1.0 |
| FOV | About 12.7°×360° |
| Pitch Range | -90°～ +45° |
| Rotation Speed | 180°/s |
| Ready to Use | On Time |
| Power Supply | DC 22-28V (typical 24V) |
| Static Power Consumption | 14W(@24V) |
| Connector Type | Waterproof Connector |
| Size | Φ350mm×450mm |
| Weight (Excluding Cables) | Less than 17 Kg |
| Environmental Adaptability | Operating Temperature: -30℃~55℃ |
| Storage Temperature: -40℃~60℃ | |
| Protection Level | IP66 |
| Detection Capability | 1.2KM for UAV(450mm) |
| 1.7KM for Human(1.7m) | |
| 3.5KM for Vehicle(4m) | |
| 7KM for Boat(8m) | |
Key Features:
Reliable IR Surveillance for Asymmetric Threats
Cost-Effective Total Solution
24/7 Panoramic Day-Night Surveillance
Simultaneous Multi-Threat Tracking
High-Resolution Image Clarity
Rugged, Compact & Lightweight for Rapid Deployment
Fully Passive & Undetectable Operation
Uncooled, Maintenance-Free System
Application
Maritime – Force Protection, Navigation and Combat ISR
Commercial Merchant Vessels – Security / Anti-Piracy
Land – Force Protection, Situational Awareness
Border Surveillance – 360° Cueing
Oil Platforms – 360° Security
Critical site force protection – 360 troop security / enemy detection
-
