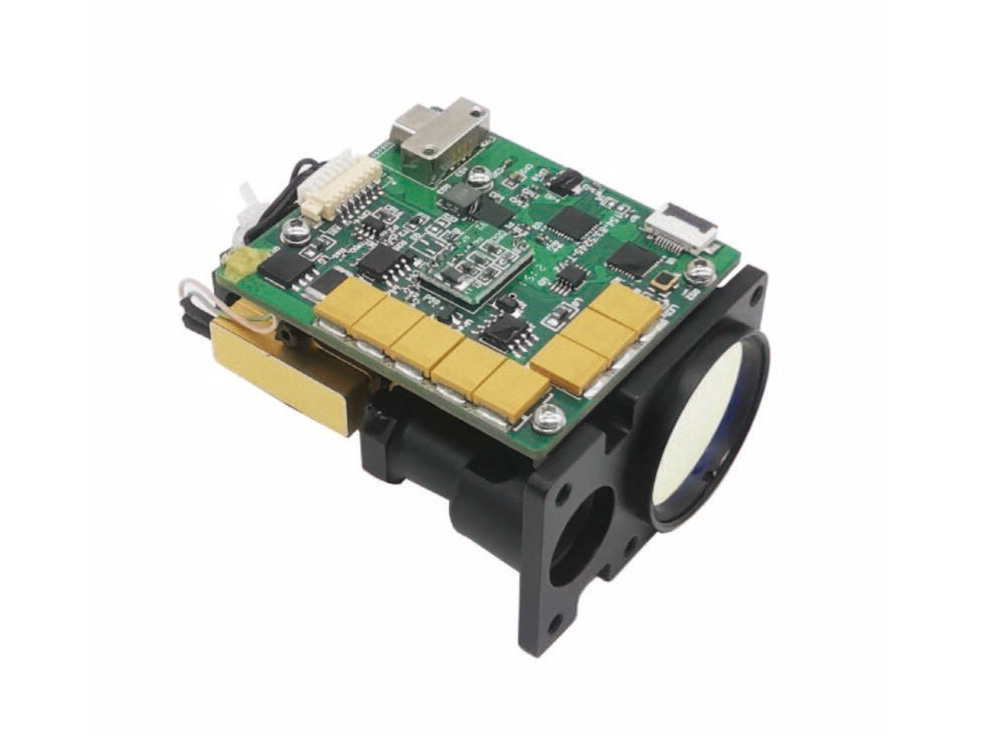

Radifeel 6km Eye-safe Laser Rangefinder

Short Description:

Designed for reconnaissance and measurement applications, our laser rangefinder for 6KM is a compact, lightweight, and eye-safe device with low power consumption, long service life, and strong temperature adaptability.

Designed without a casing, it offers flexibility for your diverse application needs and electrical interfaces. We offer testing software and communication protocols for users to perform integration for handheld portable devices and multifunctional systems.

Request A Quote

Product Detail

Product Tags

Key Features

- Single-shot and continuous ranging capabilities for accurate distance measurements.

- Advanced targeting system allows for ranging of up to three targets simultaneously, with clear indication of front and rear targets.

- Built-in self-checking function.

- Standby wake-up function for quick activation and efficient power management.

- Exceptional reliability with a Mean Number of Failures (MNBF) of pulse emissions ≥1×107 times

Application

- Handheld ranging

- Drone-mounted

- Electro-optical pod

- Boundary monitoring

Specifications

Laser Safety Class	Class 1
Wavelength	1535±5nm
Maximum Ranging	≥6000 m
Maximum Ranging	Target size: 2.3m x 2.3m, visibility: 10km
Minimum Ranging	≤50m
Ranging Accuracy	±2m (affected by meteorological conditions and target reflectivity)
Ranging Frequency	0.5-10Hz
Maximum Number of Target	5
Accuracy Rate	≥98%
False Alarm Rate	≤1%
Envelope Dimensions	50 x 40 x 75mm
Weight	≤110g
Data Interface	J30J (customizable)
Power Supply Voltage	5V
Peak Power Consumption	2W
Standby Power Consumption	1.2W
Vibration	5Hz, 2.5g
Shock	Axial 600g, 1ms (customizable)
Operating Temperature	-40 to +65℃
Storage Temperature	-55 to +70℃
